Additional Features:

• Patch Cord, Alligator Clips Both Ends
• Color: Red
• Ideal for use as a temporary jumper wire
• Alligator jaws open to 0.30

Materials:

• Wire: 18AWG, stranding 65x36 t.c., PVC insulated (.144) O.D.
• Marking: "POMONA AL-B-XX"
• Connection: Insulated Alligator Clip
• Material: Steel.
• Finish Nickel plated.
• Insulation: Vinyl. Color matches color of wire.

Ratings:

• Operating Temperature: 50 C ( 122 F.) Max.
• Voltage: Hand-held testing: 30VAC/60VDC Max.
• Hands free testing in controlled voltage environments: 150 WVDC Max.
• Current: 5 Amperes

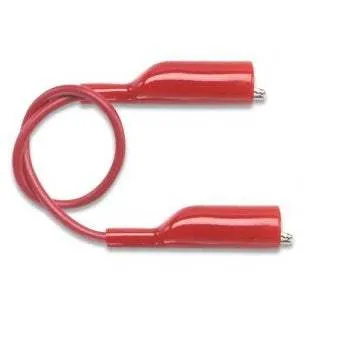

The Pomona AL-B-12-2 Test Cable Assembly offers an insulated alligator clip at each end with a jaw opening of 0.30". The patch cord is ideal for use as a temporary jumper wire. The 18AWG wire is PVC insulated and 12" in length.
